An Asse 1022 Dual Check Valve provides a practical way to support potable-water backflow protection where local code allows it. It is designed to help prevent reverse flow that could carry contaminants, corrosive substances, or carbonic acid into drinking-water lines. Using an approved device helps safeguard potable supplies while supporting compliance with local and national plumbing requirements.
Asse 1013
Backflow preventer manufacturers, including Watts, make devices that are built to meet ASSE performance requirements and recognized certifications. Depending on the model and application, approvals may include NSF/ANSI 61, UL, FM, or similar third-party listings. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. Although some authorities require higher-protection assemblies, an Asse 1022 device may be a approved low-hazard option where the local authority permits it.
The Asse 1022 Dual Check Valve is often chosen because it is cost-effective to maintain. This guide explains how Asse 1022 devices compare with higher-protection standards such as Asse 1013. It also outlines selection, installation, maintenance, and compliance steps so the unit can meet plumbing-code expectations and industry guidance.
Backflow Basics And The Role Of Dual Check Valves
Backflow creates a important risk because water can reverse direction inside a plumbing system. This reverse movement can introduce contaminants into plumbing and compromise drinking-water safety. Water authorities and adopted plumbing codes require backflow protection to help prevent this kind of contamination.
Two main hydraulic causes lead to backflow incidents. Backsiphonage occurs when supply pressure drops and creates a vacuum that pulls water backward. Backpressure happens when downstream pressure exceeds supply pressure and forces water in the wrong direction. Knowing the difference between backsiphonage and backpressure matters because each condition can call for a different type of protection.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial settings add booster pumps, closed-loop HVAC systems, and process equipment. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves, including the Asse 1022 model, are designed for low-hazard protection. They help prevent contaminants that may affect taste or odor but are not considered a direct health risk. An Asse 1022 Backflow Preventer can be a compact solution for approved low-hazard applications described by plumbing codes and water authorities.
Proper device selection and installation are guided by codes and standards. ASSE performance requirements, together with ANSI-accredited standards development, help support product acceptance. Installers should follow local plumbing-code language and relevant guidance, such as the 2018 UPC and AWWA M-14, when applying Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. Where hazards are higher, more protective devices are required.
| Backflow Issue | Common Cause | Typical Protection |
|---|---|---|
| Backsiphonage | Negative supply pressure caused by line breaks, mains work, or heavy demand | Asse 1022 Backflow Preventer or air gap where required |
| Reverse flow from downstream pressure | Downstream pressure from pumps, tanks, or thermal expansion | Dual check protection for low risk, or reduced-pressure protection for high risk |
| Drinking-water contamination risk | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Evaluate the cross-connection and install the approved protection level |
What Backflow Is And How It Happens
Backflow is the backward movement of water from any source into the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Both conditions can introduce contaminants and threaten potable water quality.
Why Low-Hazard Systems Use Dual Check Valves
A dual check valve uses two separate check mechanisms inside a single valve body. This redundancy protects low-hazard cross-connections against reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Understanding The Asse 1022 Dual Check Valve

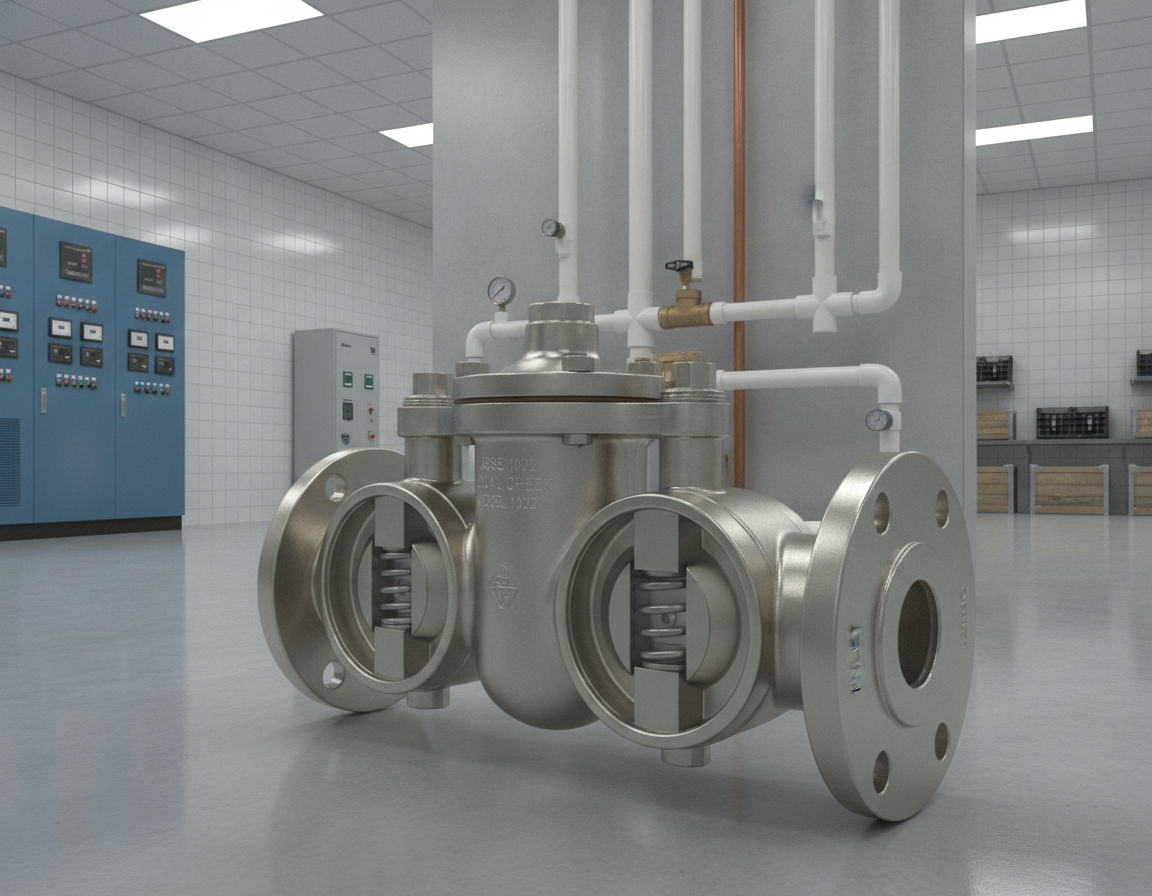

An Asse 1022 Dual Check Valve is a compact backflow prevention device used for low-hazard potable-water applications. It features two independent, spring-loaded check valves in series. This arrangement prevents reverse flow and provides redundant sealing. It maintains serviceability and reduces contamination risk during pressure shifts or brief backpressure events.
Key Features And How The Valve Works
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. That design can shorten maintenance time and reduce long-term ownership costs.
Manufacturers produce Asse 1022 units in materials such as bronze, brass, corrosion-resistant alloys, and engineered plastics. Available sizes are designed to match common pipe diameters, pressure ratings, and potable-water system requirements.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. Properly sized models can meet flow demands for common low-hazard applications.
Standards And Certifications Supporting ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. These tests verify reliable operation. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification confirms materials are safe for drinking water and helps prevent harmful contaminant leaching. UL/FM approvals validate durability and performance under pressure and stress testing. This gives specifying engineers additional assurance.
When combined with ANSI-accredited development, these approvals improve the Asse 1022 Dual Check Valve’s acceptance in plumbing codes and project specifications. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
Comparing Related Standards And Products: ASSE 1013, ASSE 1012, And ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It highlights practical differences between RPZ, double-check, and other dual-check devices used in the United States.
Device selection should start with a clear hazard-level assessment. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. By contrast, Asse 1013 RPZ units are designed for high-hazard cross-connections where contaminants could create a health risk. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Asse 1012 may apply when local rules call for specific dual-check devices or service-line configurations.
How ASSE 1022 Differs From ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ devices include a relief valve that vents to atmosphere when internal pressure drops, providing a higher safety margin. Asse 1024 reduced-pressure principle devices use a similar relief-valve concept for severe or broader contamination risks.
Testing requirements and procedure complexity vary by device type. RPZ units under Asse 1013 require more rigorous annual and post-event testing with relief valve verification. ASSE 1022 double-check devices require periodic testing of the check mechanisms, generally with simpler procedures than RPZ assemblies.
When ASSE 1012 Or Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Use this category when local code or the water authority accepts a dual-check style but specifies a different recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may accept ASSE 1022 in low-hazard cases or require Asse 1012-certified dual-check devices for certain service lines. Always confirm requirements with the local water authority before installation.
| Feature | Asse 1022 | ASSE 1013 RPZ | Asse 1024 Reduced Pressure Principle | ASSE 1012 Device |
|---|---|---|---|---|
| Primary use | Low-hazard services like irrigation and some HVAC | High-hazard cross-connections and health-risk protection | Severe backflow hazards needing relief-valve protection | Dual-check configurations for specific service applications |
| Hazard protection | Low | Higher protection level | High | Low to moderate |
| Relief feature | No | Includes atmospheric relief valve | Yes, required | No, unless specified |
| Inspection requirement | Periodic testing of both checks | More rigorous annual RPZ testing | Annual reduced-pressure assembly testing | Periodic testing per authority rules |
| Typical applications | Residential irrigation and selected HVAC makeup lines | Boiler makeup, chemical feed, and health-hazard connections | Serious contamination scenarios with possible health impact | Service-line applications where dual-check protection is accepted |
| Authority preference | Permitted where local authority approves low-hazard use | Often required where contamination could affect health | Specified for severe hazard protection | Used when specified by local code or utility |
When comparing ASSE 1022 with RPZ assemblies, consider the hazard level, safety margin, and testing burden. The choice between RPZ and double-check protection depends on hazard classification, local plumbing code, and water authority rules. When in doubt, choose the higher protection level specified by the authority having jurisdiction.
Installation, Maintenance, And Code Compliance
Proper Asse 1022 installation begins with thorough planning. Dual check valves should be installed where they are accessible and oriented according to the manufacturer’s instructions. Leave adequate clearance for service access, testing ports, shutoffs, and unions. This lets certified testers access fittings without unnecessary disassembly.
Use sound piping practices so the installation does not create a new cross-connection risk. Do not place the device where downstream cross-connections can bypass or undermine the protection. Install shutoffs, unions, drains, and service fittings as required by the manufacturer and local code. Make sure unions and test cocks remain accessible for routine service and backflow testing.
Maintenance intervals are usually determined by local regulations, water authority rules, and site requirements. Many jurisdictions require annual inspection or testing by certified backflow professionals. Detailed records of service and test results are important for proving compliance during audits and permit reviews.
Certified testers can provide documentation that meets many regulatory and water-authority requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Selecting devices with recognized listings can simplify inspection and approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance may also be important for commercial, industrial, or fire-protection connections that require third-party recognition.
Before installation, learn the applicable plumbing code edition and water authority rules in your area. Some locations may require an RPZ instead of a dual check. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Establish a consistent record-keeping routine. Keep manufacturer cut sheets, test certificates, repair invoices, and a location map together. This makes future inspections easier and supports clear compliance during regulatory reviews.
Product Selection Guidance And Where To Buy
Selecting the right device requires matching pipe size, pressure rating, material, and system demand. Confirm that the Asse 1022 Dual Check Valve matches the pipe diameter and peak-flow requirement. Check pressure ratings against maximum working pressure, surge conditions, and site-specific operating conditions.
Material compatibility is essential for potable water systems. Choose brass, bronze, or NSF/ANSI 61-certified plastics to avoid corrosion or leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Verifying certifications can make approval and inspection easier. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If local codes demand UL or FM approval, confirm those marks before purchase.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers can provide genuine products, documentation, and warranty assistance. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty coverage and pricing rules can affect the final purchase cost. Review manufacturer warranty limits and any MAP rules that hide prices online. Some suppliers show final pricing only in the cart while still preserving warranty coverage through authorized sales channels.
How To Choose Materials
- Match pipe size and flow to the Asse 1022 Dual Check Valve model.
- Prefer components with NSF/ANSI 61 certification for potable systems.
- Verify pressure rating and surge tolerance for the Asse 1022 Backflow Preventer.
Trusted Suppliers
- Buy from certified dealers to ensure inspection documentation.
- Choose vendors that offer sizing support and warranty handling.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Factor | Details to Confirm | Why It Helps |
|---|---|---|
| Size and Flow | Pipe size, peak GPM, and manufacturer sizing chart | Prevents pressure loss and ensures proper operation |
| Body and wetted material | Corrosion-resistant materials and potable-water certifications | Reduces leaching concerns and supports longer service life |
| Working pressure rating | Maximum working pressure and surge capacity | Supports safe operation during everyday use and pressure spikes |
| Compliance markings | ASSE listing, NSF/ANSI 61, and UL/FM marks where needed | Simplifies permitting and meets code requirements |
| Supplier | Dealer authorization, paperwork, and warranty support | Provides documentation and warranty help after purchase |
| Warranty and final cost | Manufacturer warranty details, MAP pricing policies | Protects investment and clarifies purchase cost |
Summary
ASSE 1022 double-check valves can be compact solutions for low-risk backflow prevention when approved by the local authority. The Asse 1022 Dual Check Valve uses two spring-loaded checks and materials that meet NSF/ANSI 61 and ASSE standards. This helps reduce contamination risk in approved uses such as irrigation systems and certain HVAC makeup lines.
Choosing the right device depends on hazard level and code compliance. Use an Asse 1022 Backflow Preventer for low-hazard scenarios. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Correct selection can simplify permitting, reduce rework, and improve potable-water protection.
To ensure backflow prevention compliance, follow manufacturer guidelines and local plumbing codes. Where applicable, this may include the 2018 UPC, local amendments, and water authority rules. Buy certified products from trusted suppliers or authorized dealers. Confirm ASSE listings, NSF/ANSI 61 certification, and UL or FM approvals when those marks are required.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. When supported by certified devices and qualified testers, these steps help protect potable water. They also make regulatory acceptance, inspection, and documentation easier. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
